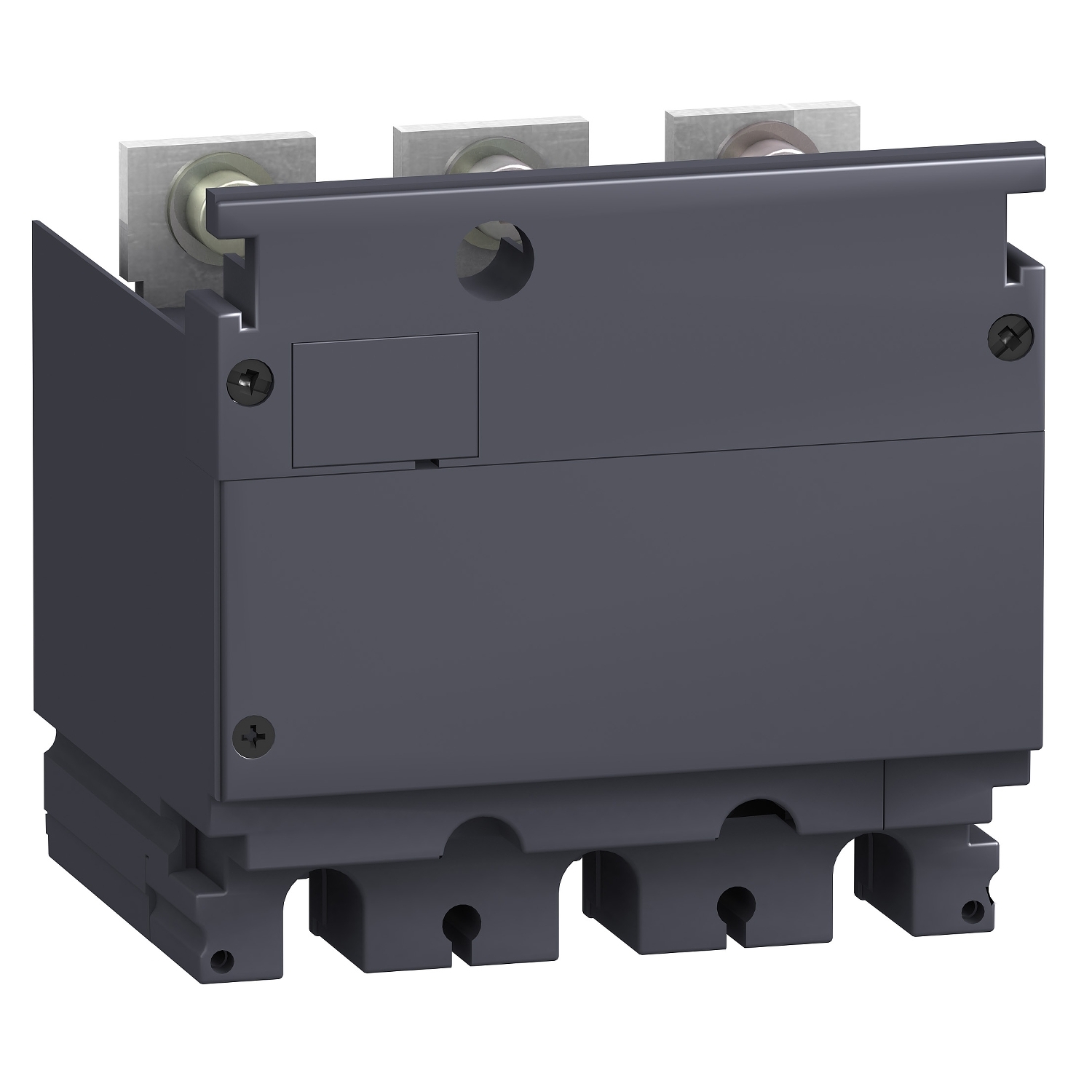

Modul Transformator De Curent - 150 A - 3 Poli - Pentru Nsx160 - 250 Schneider LV430561

Producator:  SCHNEIDER

Descriere produs: This is an additional current transformer module with voltage measurement output of 150A rating for 3 poles Compact NSX 160 devices. This module enables direct connection of a measurement device such as an ammeter. The module is installed directly on the downstream circuit breaker power terminals. The current at the secondary winding is 5A. The rated voltage Ue is 530VAC 50/60Hz. There are 3 voltage outputs including protection with automatic reset, that can be used only for voltage measurement. The power consumption accuracy is 5VA (class 3). There is a class II insulation level between the front face and the power circuits. The protection degree is IP40.
