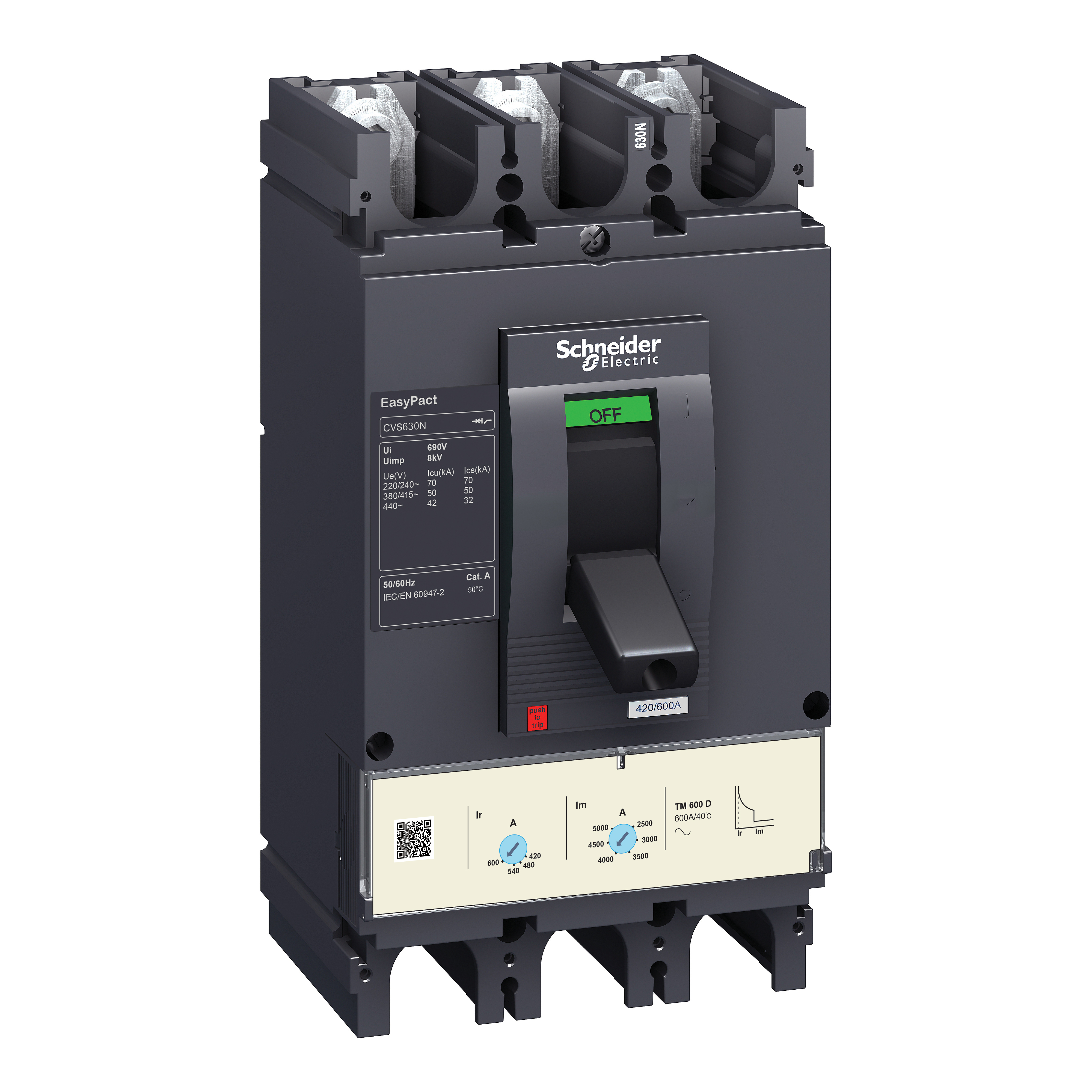

Easypact Cvs - Cvs630F Tm500D intreruptor - 3P/3D Schneider LV563305

• Disponibilitate: Solicită informații despre disponibilitate
• Brand: SCHNEIDER
• Cod: LV563305

• Cantitate minim comandata: 1 BUC

• UM: BUC

• Descriere produs: EasyPact CVS630F is a 3 poles 3d fixed circuit breaker with a high level of performance and cost-saving functionality. It is an optimal choice for small and medium-sized buildings protection applications. The breaking capacity (Icu) is 36kA rms at 415VAC 50/60Hz. The operational voltage is 440VAC 50/60Hz. This product embeds a 500A rating thermal-magnetic trip unit (TMD). TMD trip unit provides an adjustable thermal overload protection and a fixed magnetic protection. This 3 poles version (140mm x 255mm x 110mm) comes with a variety of optional functions and accessories. EasyPact CVS630F is compliant with international standards (IEC 60947, CCC, EAC). It can be installed in class II insulation switchboards as it is a class II front face device (IEC 60664-1).
