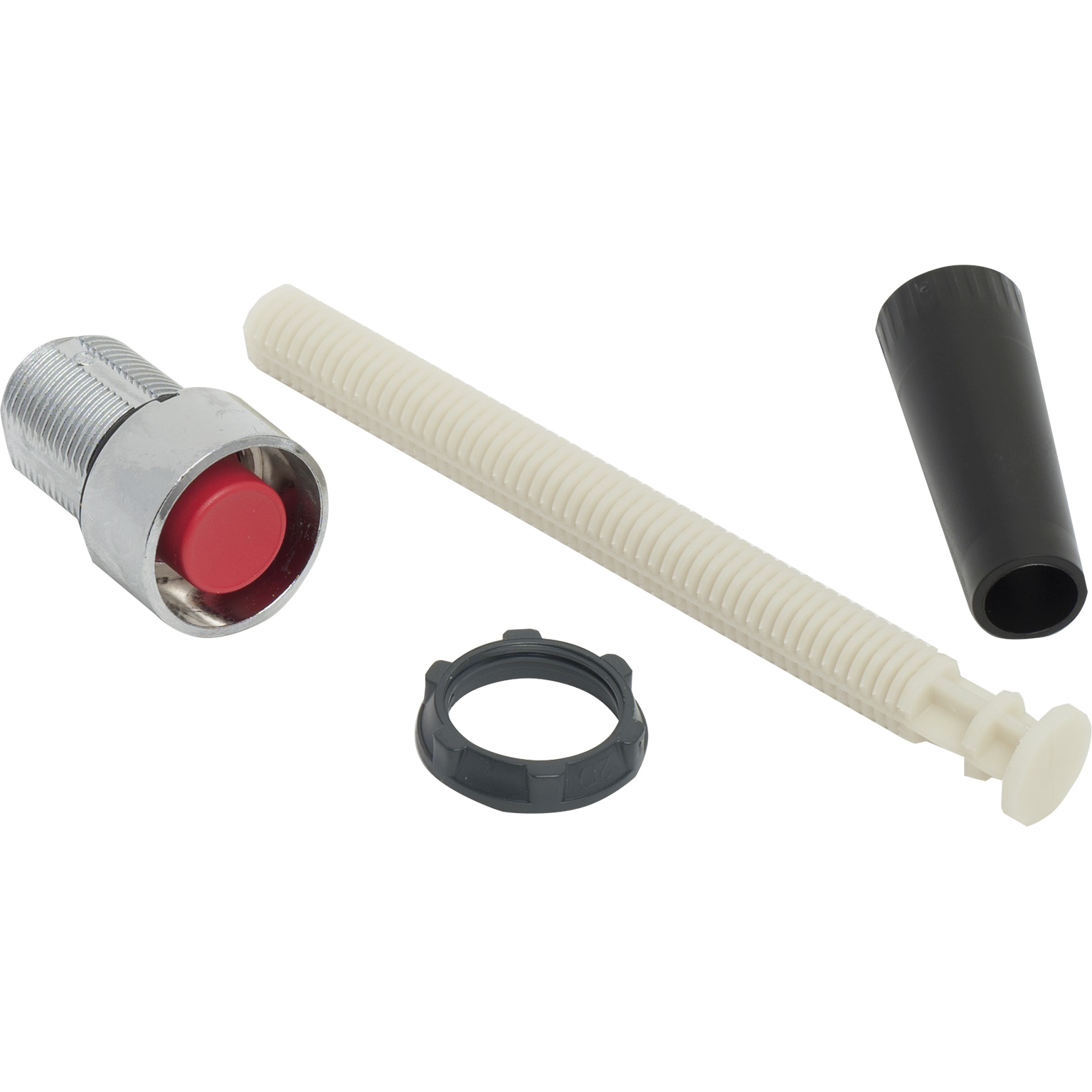

Buton De Resetare Incastrat, Rosu Ø22 Pt. Distanta De Actionare 30 - 130 Mm, Schneider, XB4BA941

Buton De Resetare Incastrat Rosu Ø22 Pt. Distanta De Actionare 30 - 130 Mm Schneider XB4BA941

Citeste mai mult

Disponibilitate:
Brand: SCHNEIDER
Cod: XB4BA941

Cantitate minim comandata: 1 BUC

UM: BUC

Descriere produs: This manual overload reset with operating travel 14 mm and activating distance 30 to 130 push-button provides a complete button interface to your machines with a single panel cut-out It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments It is easily installed into a standard 22mm diameter cut-outs and connected with simple screw-clamp connections High performance International standards & certifications ( Marine certification, IP66, Type 13 and 4X)

Fisa tehnica

80.19 Lei

Date tehnice

certificari produs	GL
certificari produs	listat de UL
certificari produs	DNV
certificari produs	LROS (Lloyds register of shipping)
certificari produs	CSA
certificari produs	BV
grad de protectie IK	IK03 conformitate cu IEC 50102
temperatura ambientala de functionare	-40-70 °C
gama de produse	Harmony XB4
activare la distanta	30-130 mm
standarde	EN/IEC 60947-5-5
standarde	EN/IEC 60947-1
standarde	UL 60947-1
standarde	JIS C8201-5-1
standarde	CSA C22.2 No 15
standarde	EN/IEC 60947-5-4
standarde	SR EN 60947-5-1
standarde	JIS C8201-1
cursa de operare	14 mm
diametrul de montaj	22 mm
tip produs sau componenta	manual overload reset push-button
forma a capului unitatii de semnalizare	rotund
capac/operator sau culoare lentila	rosu
customizable	0
greutate neta	0.058 kg
material inel de fixare	zamak
grad de protectie IP	IP66 conformitate cu SR EN 60529
tip cap	standard
rezistenta la spalare cu presiune inalta	7000000 Pa la 55 °C, distanţa : 0.1 m
temperatura de depozitare	-40-70 °C
material rama	metal cromat
grad de protectie NEMA	NEMA 13
grad de protectie NEMA	NEMA 4X
profil utilizator	rosu Incastrat, nemarcat
durabilitate mecanica	5000000 cic
Cod compatibilitate	XB4
personalizabil	no
clasa de protectie la electrocutare	clasa I conformitate cu IEC 60536
tratament protector	TH
nume scurt al dispozitivului	XB4
